Looking at the Tano motherboard I can't see an MC1372
http://archive.worldofdragon.org/images/4/40/Tano64.png



On Mon, Sep 30, 2013 at 9:58 PM, Luis Antoniosi (CoCoDemus) <
retrocanada76 at gmail.com> wrote:

> Is there a chrominance output on it ?
>
>
> On Mon, Sep 30, 2013 at 2:57 PM, Ken H. <dragon.atv at gmail.com> wrote:
>
> > This is an amazing video quality for the CoCo1 !
> > Do you think a similar mod could be done with the Tano Dragon?
> >
> >
> > On Mon, Sep 30, 2013 at 5:59 AM, Luis Antoniosi (CoCoDemus) <
> > retrocanada76 at gmail.com> wrote:
> >
> > > With a very simple driver you can make a perfect a s-video output for
> > your
> > > coco1
> > >
> > > http://www.youtube.com/watch?v=47r1S8Sjr20
> > > http://www.youtube.com/watch?v=2AYpUA5H5tg
> > >

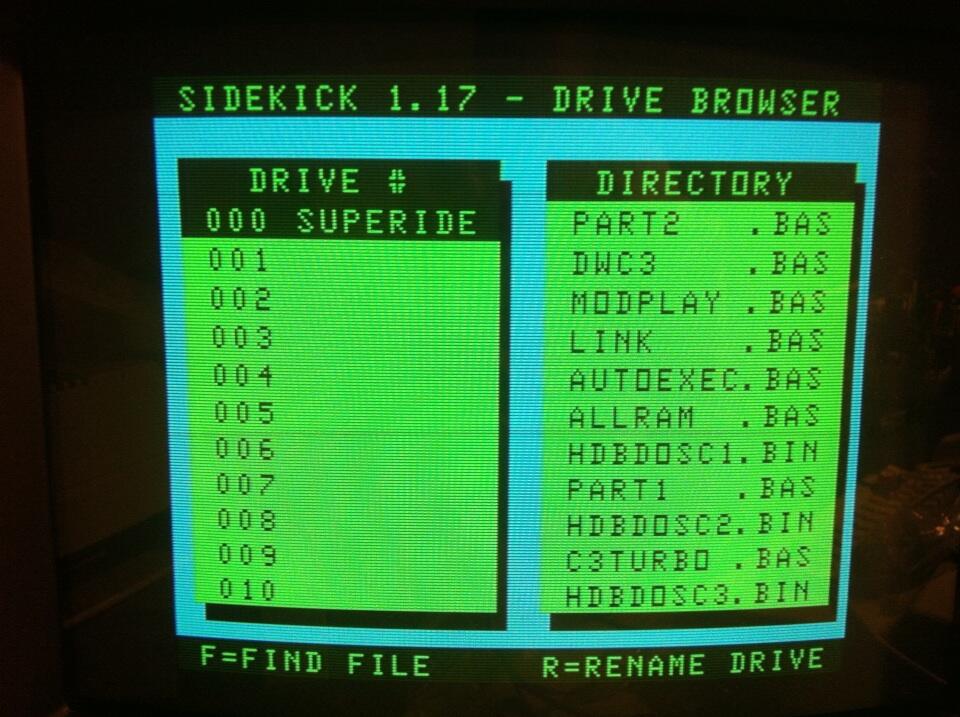

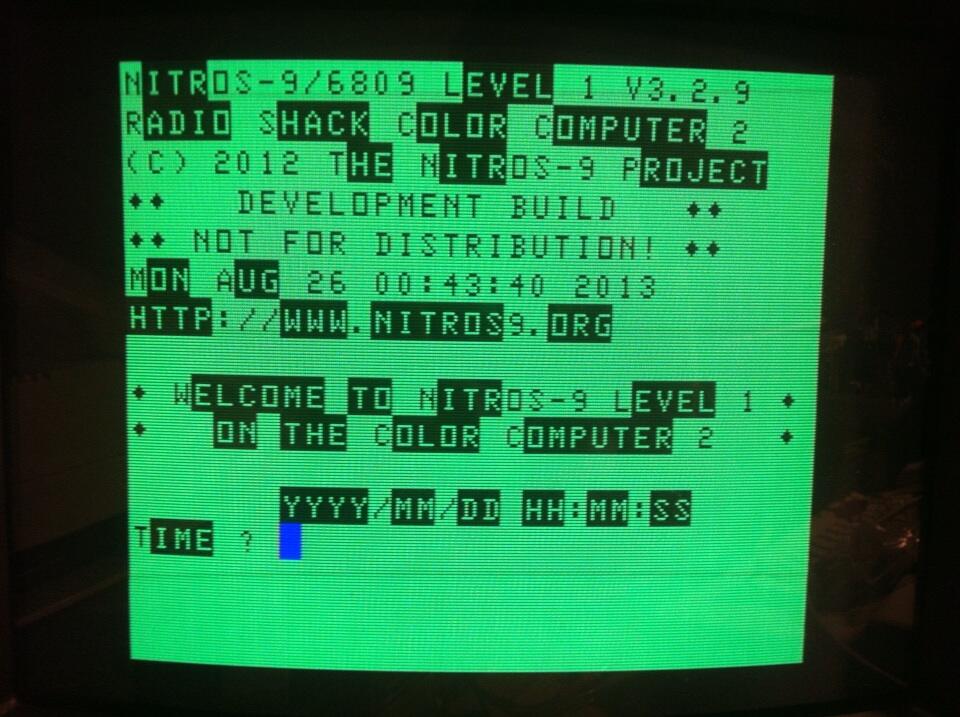

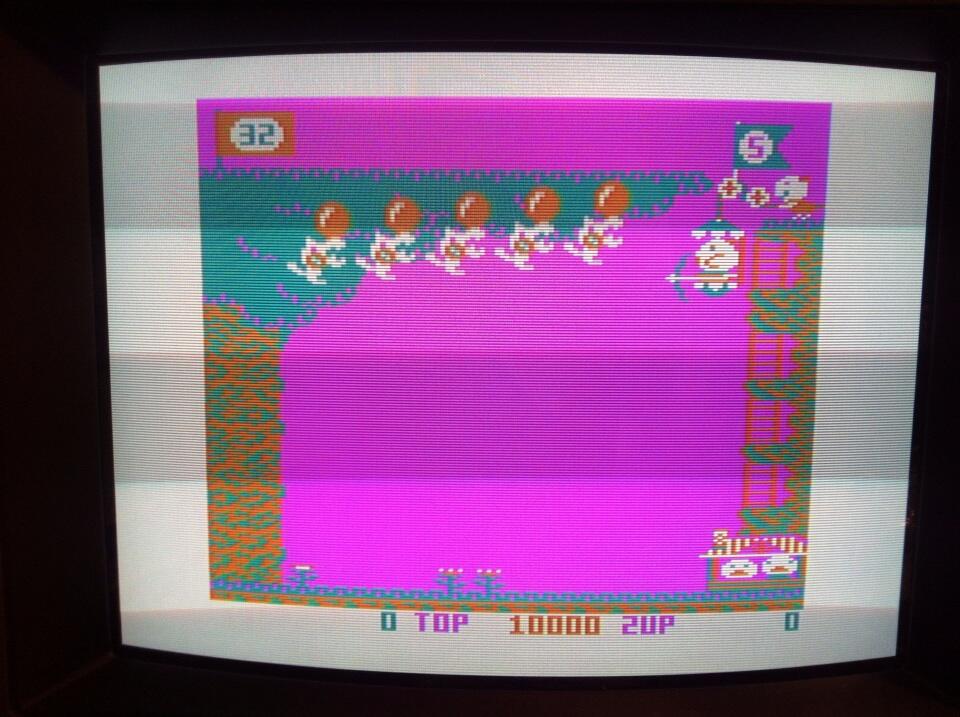

> > > https://pbs.twimg.com/media/BVYIpfxCEAAy8kO.jpg:large
> > > https://pbs.twimg.com/media/BVYItw_CQAAQupH.jpg:large
> > > https://pbs.twimg.com/media/BVYIxdGCcAEMydj.jpg:large
> > > https://pbs.twimg.com/media/BVYI0ZaCAAAikiF.jpg:large
> > > https://pbs.twimg.com/media/BVYJEVaCQAAJz1z.jpg:large
> > > https://pbs.twimg.com/media/BVYJIJQCQAAXWOf.jpg:large
> > >
> > > Basicaly s-video signal works with 2 signals: Luminance and
> chrominance.

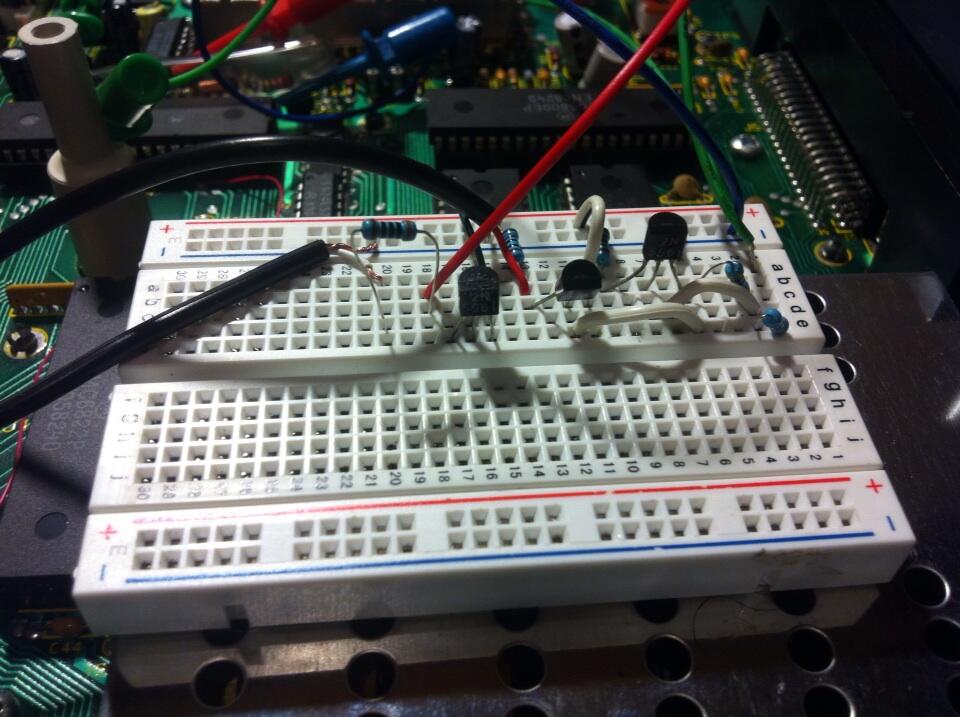

> > > The luminance you can use the same monochrome driver you are used to, 2
> > > transistors tied on Y output from 6847. But the chrominance you get
> from
> > > 1347 pin 8. A 300 Ohm resistor is needed to reduce the vertical lines.
> It
> > > worked with 2 monitors an a s-video / vga converter I have here.
> > >
> > > Check the video how to get artifact colors from it.
> > >
> > > Didn't test on coco2, dunno if works since the 1372 is connected
> > different
> > > there.
> > >
> > >
> > > --
> > > Long live the CoCo
> > >
> > > --
